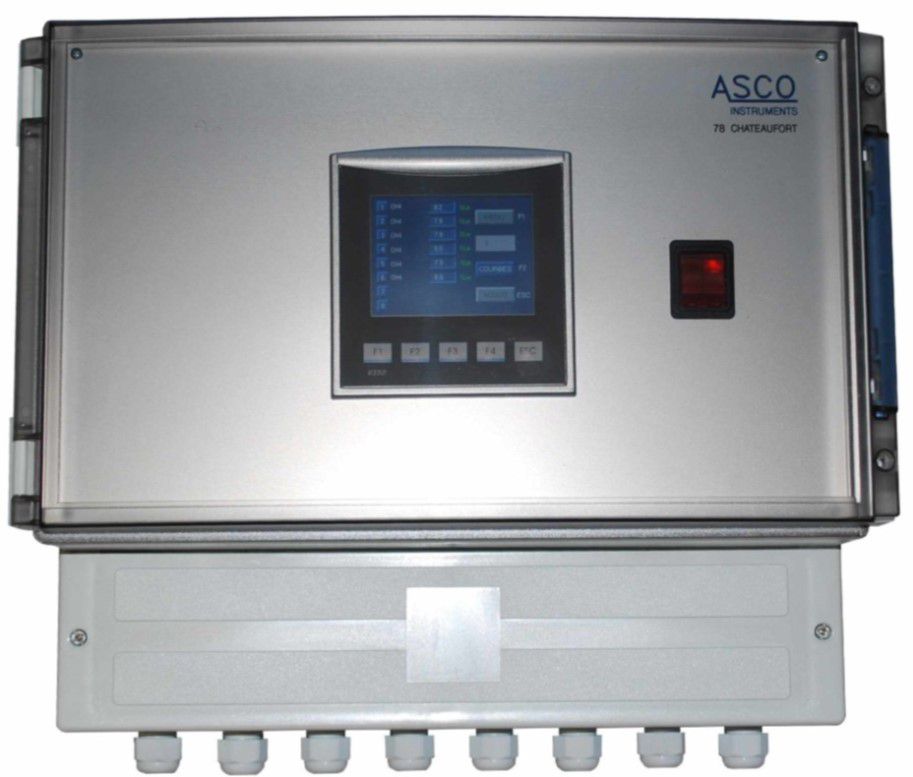

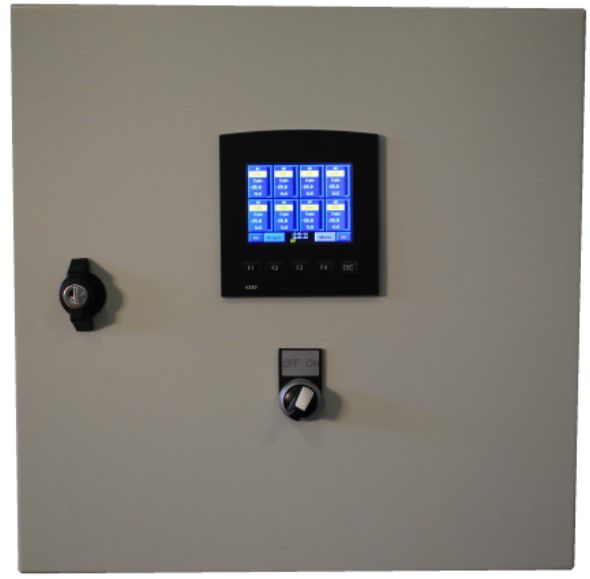

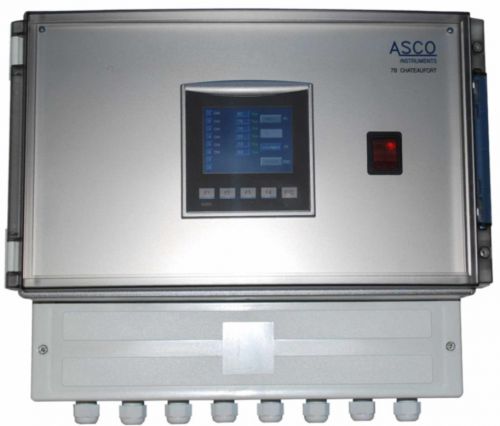

This sophisticated control unit is extremely versatile, an economical compromise between a conventional control unit and a supervisory control unit.
The screens are ergonomically designed for easy configuration by any user. Expandable up to 30 analog measurement channels. The color touch screen displays a history of curves for each measurement channel.
A configurable data logger allows values to be saved on a 2 Go SD card in Excel TM format.
Alarm levels for each channel can be grouped on potential-free relay outputs.
Serial ports enable management of printers and supervisory systems (ASCII and Modbus RTU).

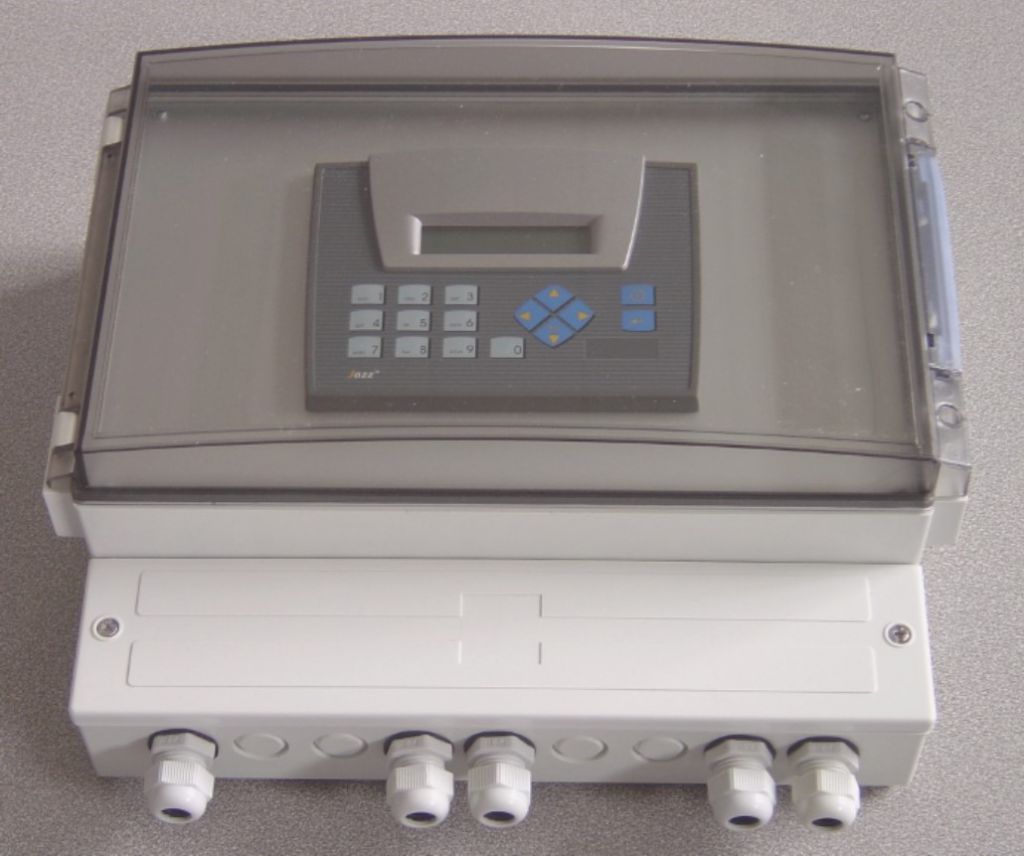

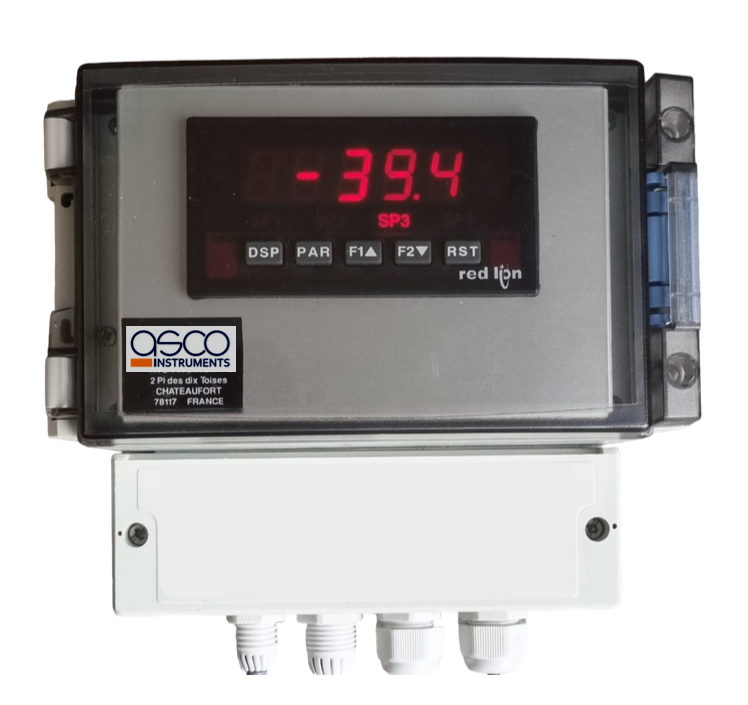

The MONOSCAN datalogger is designed for use with current loop transducers.
The linearization of the input signals, and the high supply current available, enable the MONOSCAN to be adapted to 2- or 3-wire current loop transducers.
Easy to install and use, this control unit is delivered pre-configured for the required application.
The "COM" option enables dialogue with a supervisor or a man/machine interface.
Four integrated thresholds manage local slaving.
An audible alarm draws the user's attention when a threshold is exceeded.
Three programmable function keys and integrated Auto Tare make operation easy.
5-digit display with min/max information memorizes peak values.

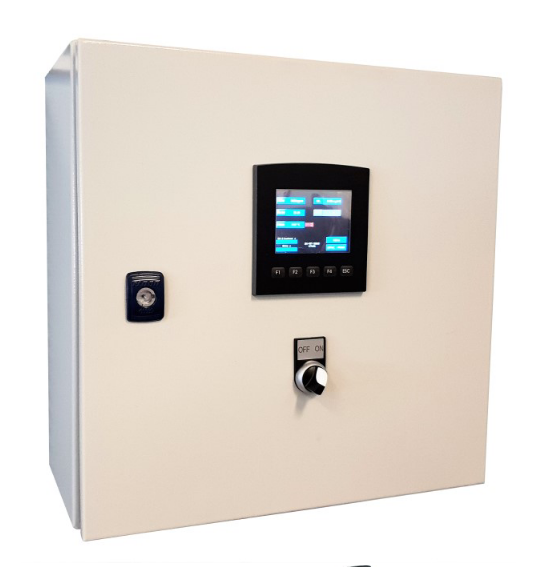

This space-saving device, available in a wall-mounted box or a case, is ideal for oil and VOC measurement applications.

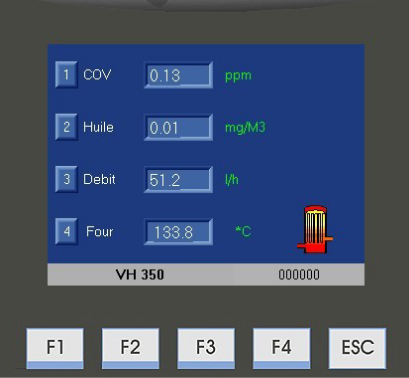

Measured values can be indicated :
An evaporation oven enables measurement of oil mists. The high sensitivity of the measuring cell enables values below 0.01 ppm to be measured with an accuracy of 5 ppb.
Alarm thresholds can be set according to oil type, from 0.5mg/M3 (0.1 mg for some oils).
An ergonomic color touch-screen PLC allows you to set the various variables.
Traceability is recorded on an SD card in CSV format.

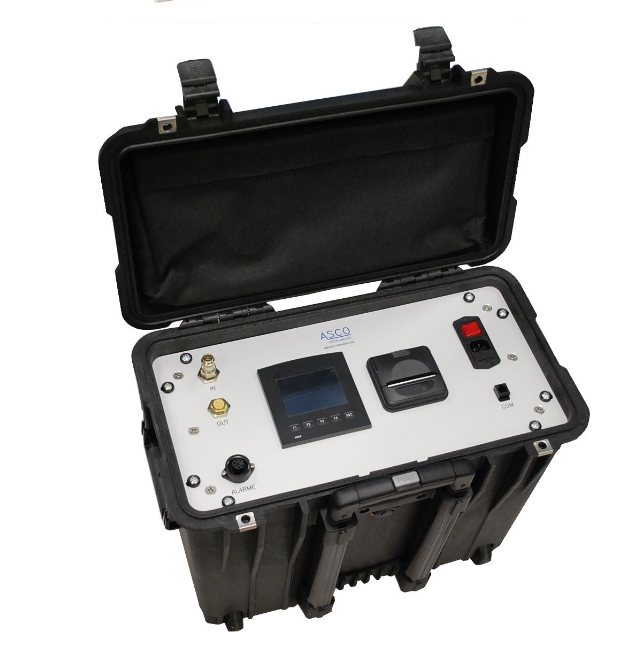

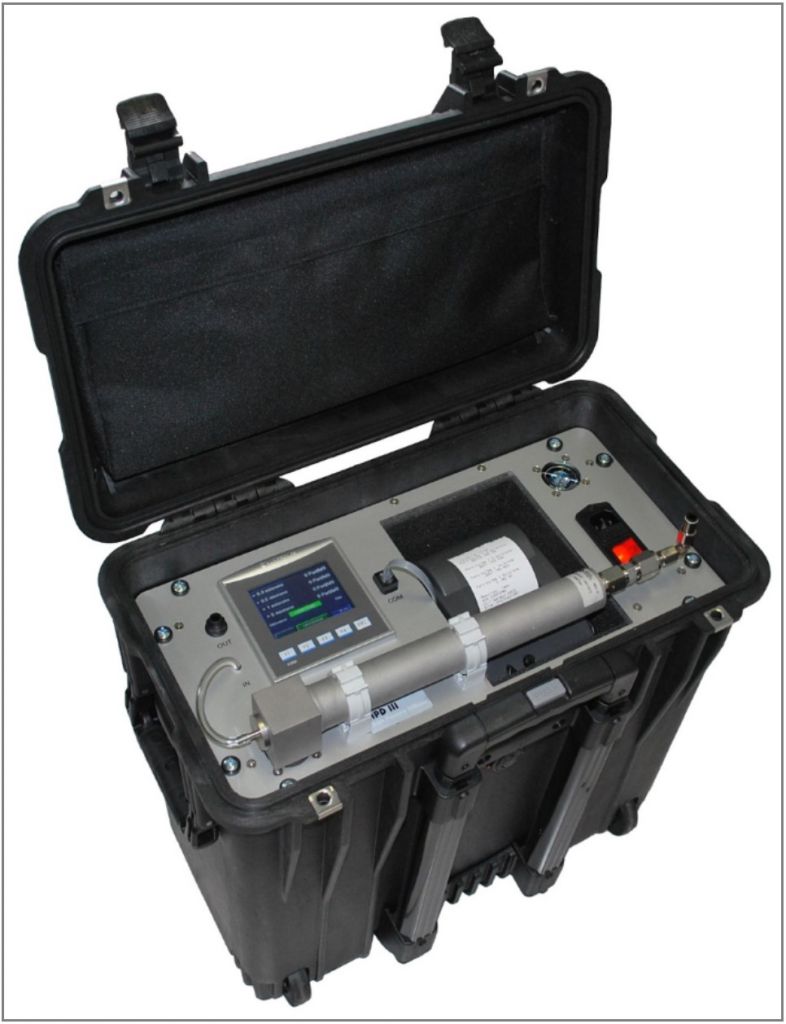

A simple, portable, high-performance device.
This compact, waterproof case with wheels is ideal for jobsite applications.
Ambient or pressurized measurements, depending on equipment.
The 4-channel measuring cell differentiates particle size and assigns an alarm to each channel.
The automatic system enables spot measurement, with traceability on SD card and printer.
No adjustment or interpretation is required to validate the measurement.
An ergonomic color touchscreen is used to set the various variables.
This specific unit is designed for downgrading ATEX zones.
Its main use is to control extraction rates in ATEX zones.
Easy to use, this control unit is certified for use with specific flow sensors.
It must be installed in a safe area.
The two analogue inputs are designed to accept the following two configurations:
Two ATEX flow sensors for Zone 0.
Or
One flow sensor for Zone 0.
One explosimeter sensor for Zone 1.
This control unit is designed to detect a lack of flow and not for accurate flow measurement.
